Wiring

Not too much to do here.

Replace trans wiring with manual wiring - reverse switch/speedo sender.

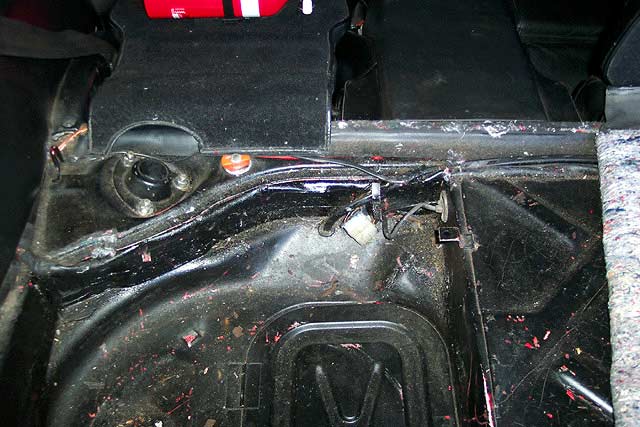

This is in the spare wheel well - top right.

You unplug the plugs and push plugs and grommet out through the hole.

Next is the metal link that replaces the auto lockout relay. Relay # XIV

Last up is the micro switch above the clutch pedal - part of the cruise control circuit. Just need to mount the switch, the wiring for this is under the dash somewhere. Clipped up out of the way.
